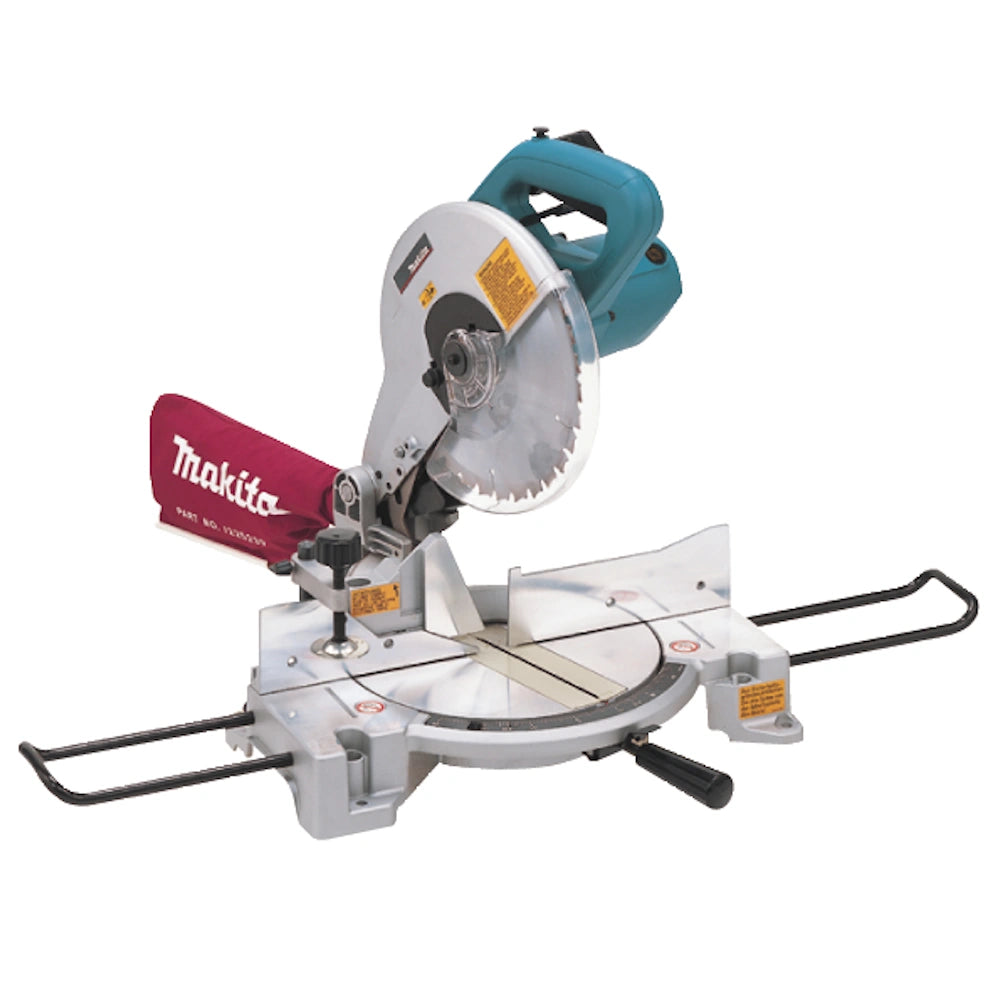

Compound Miter Saw LS1040

Compound Miter Saw LS1040

265.000 JOD
265.000 JOD
Sale Sold out
Shipping calculated at checkout.

MITER SAW  255MM (10")

1 650 W • 260 mm • 3 200 min⁻¹

Compact high-efficiency saw for quick and accurate cutting

A compact, high-efficiency basic saw with a 1 650 W motor and high capacity for accurate cross and mitre cutting. The tool is equipped with a work light and has a rugged design.

User Guide for LS1040 View full details

Product Specifications

Bore Size (Arbor Diameter): 30 mm

Capacity 45° (Miter R/L 45°, Bevel 0°): 69 x 92 / 90 x 67 mm

Capacity 90°: 69 x 130 / 90 x 95 mm

Capacity 45° left (Miter 0°, Bevel L 45°): 35 x 130 / 48 x 95 mm

Sound Pressure Level: 91 dB(A)

Max. Bevel Range (Left): 45 / 0 º

Power Supply Cord: 2,5 m

Product Dimensions (L x W x H): 530 x 476 x 532 mm

Continuous Input Power: 1650 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Vibration Level (3 axes): ≤ 2,5 m/s²

Sound Power Level (LWA): 101 dB(A)

Weight Without Cable (EPTA): 12,6 kg

Noise Uncertainty (K Factor): 3 dB(A)

Vacuum cleaner connection Ø in / out: 32/37 mm

Blade Diameter: 260 mm

Tool Category: Sawing

Bevel capacity right 45° (Miter 0°, Bevel R 45°): 35 x 130 / 48 x 95 mm

No load speed: 4600 min⁻¹

Max. Mitre Range (Left): 45 / 52 º
