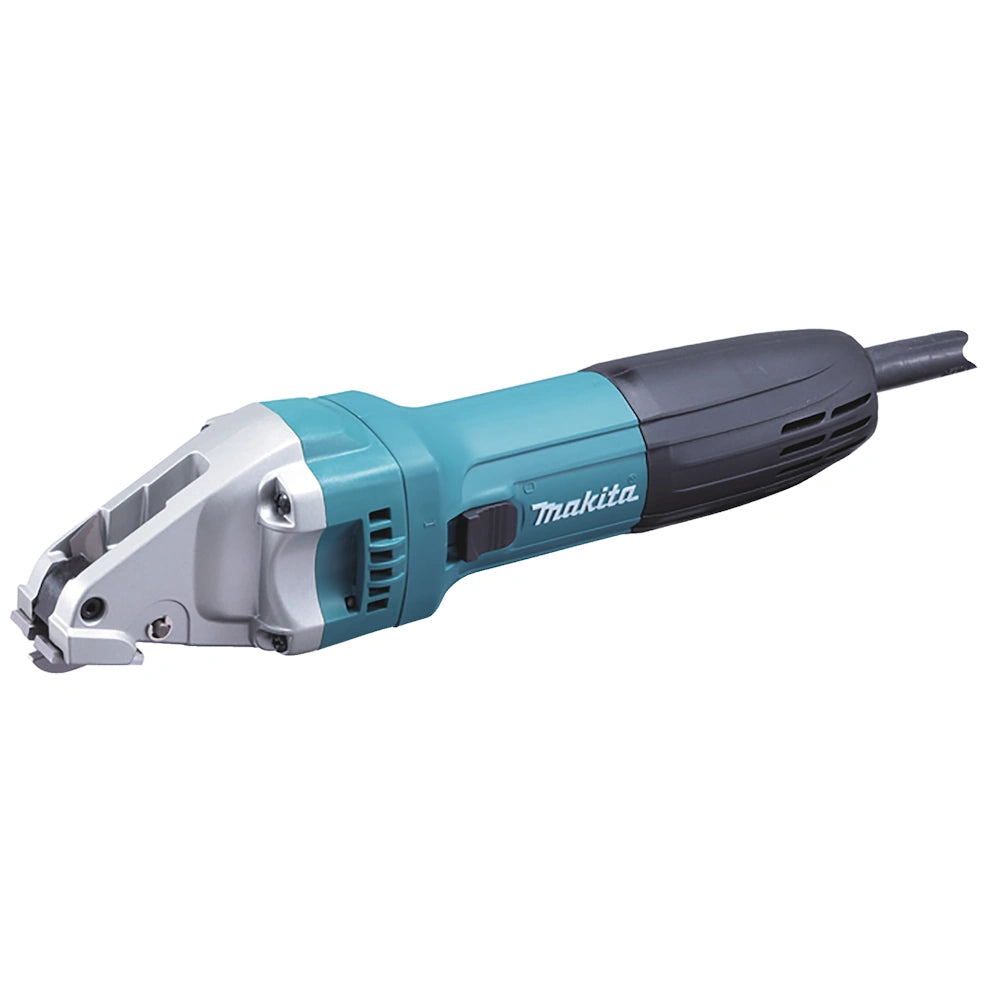

Metal Shear JS1601
Metal Shear JS1601
Couldn't load pickup availability
(D)STRAIGHT SHEAR 1.6MM
380 W • 4 500 min⁻¹
A high capacity metal shear with a radius of 250 mm
A metal shear for straight and curved cuts with a radius of 250 mm, cuts a clean-edged strip from the middle. Cutting capacity of 2,5 mm for aluminium and 1,6 mm for steel. A motor capacity of 380 W and a stroke rate of 4 500 min-1.
Share
Collapsible content
Product Specifications
Cutting Capacity Aluminum (up to 200N/mm²): 2,5 mm
Cutting Capacity Mild Steel (up to 400N/mm²): 1,6 mm
Cutting Capacity Stainless Steel (up to 600N/mm²): 1,2 mm
Cutting Capacity Stainless Steel (up to 800N/mm²): 0,8 mm
Sound Pressure Level: 77 dB(A)
Power Supply Cord: 2,5 m
Product Dimensions (L x W x H): 320 x 70 x 78 mm
Min. Internal Cutting Radius: 250 mm
Strokes per Minute (SPM): 4500 min⁻¹
Continuous Input Power: 380 W
Vibration Uncertainty (K Factor): 1,5 m/s²
Product net weight (new): 1,4 kg
Vibration Level (3 axes): 9,5 m/s²
Sound Power Level (LWA): 88 dB(A)
Weight Without Cable (EPTA): 1,4 kg
Noise Uncertainty (K Factor): 3 dB(A)
Min. External Cutting Radius: 254 mm
Tool Category: Cutting
Product Features
- Compact and lightweight design
