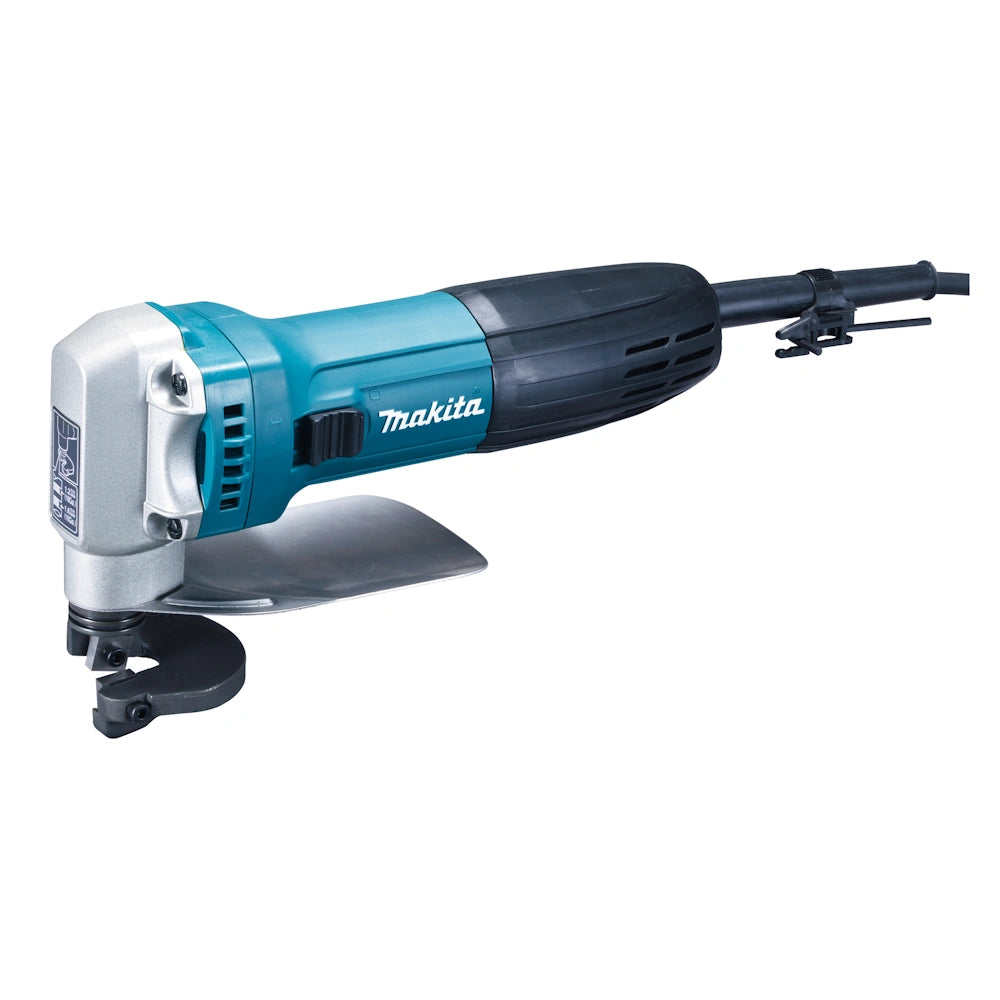

Metal Shear JS1602

Metal Shear JS1602

275.000 JOD
275.000 JOD
Sale Sold out
Shipping calculated at checkout.

SHEAR 1.6MM (1/16")

380 W • 4 000 min⁻¹

Handy, high-capacity metal shear

A metal shear for straight and curved cuts with a radius of 30 mm, cuts a clean-edged strip from the middle. A high cutting capacity of 2,5 mm for aluminium and 1,6 mm for steel. A motor capacity of 380W and a stroke rate of 4 000 min-1.

User Guide for JS1602 View full details

Product Specifications

Cutting Capacity Aluminum (up to 200N/mm²): 2,5 mm

Cutting Capacity Mild Steel (up to 400N/mm²): 1,6 mm

Cutting Capacity Stainless Steel (up to 600N/mm²): 1,2 mm

Cutting Capacity Stainless Steel (up to 800N/mm²): 0,8 mm

Sound Pressure Level: 79 dB(A)

Power Supply Cord: 2,5 m

Product Dimensions (L x W x H): 255 x 74 x 146 mm

Min. Internal Cutting Radius: 30 mm

Strokes per Minute (SPM): 4000 min⁻¹

Continuous Input Power: 380 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Product net weight (new): 1,6 kg

Vibration Level (3 axes): 7,0 m/s²

Weight Without Cable (EPTA): 1,6 kg

Noise Uncertainty (K Factor): 3 dB(A)

Min. External Cutting Radius: 30 mm

Tool Category: Cutting
