Metal Shear JS3201

Metal Shear JS3201

310.000 JOD
310.000 JOD
Sale Sold out
Shipping calculated at checkout.

SHEAR 3.2MM (1/8 ")

710 W • 1 600 min⁻¹

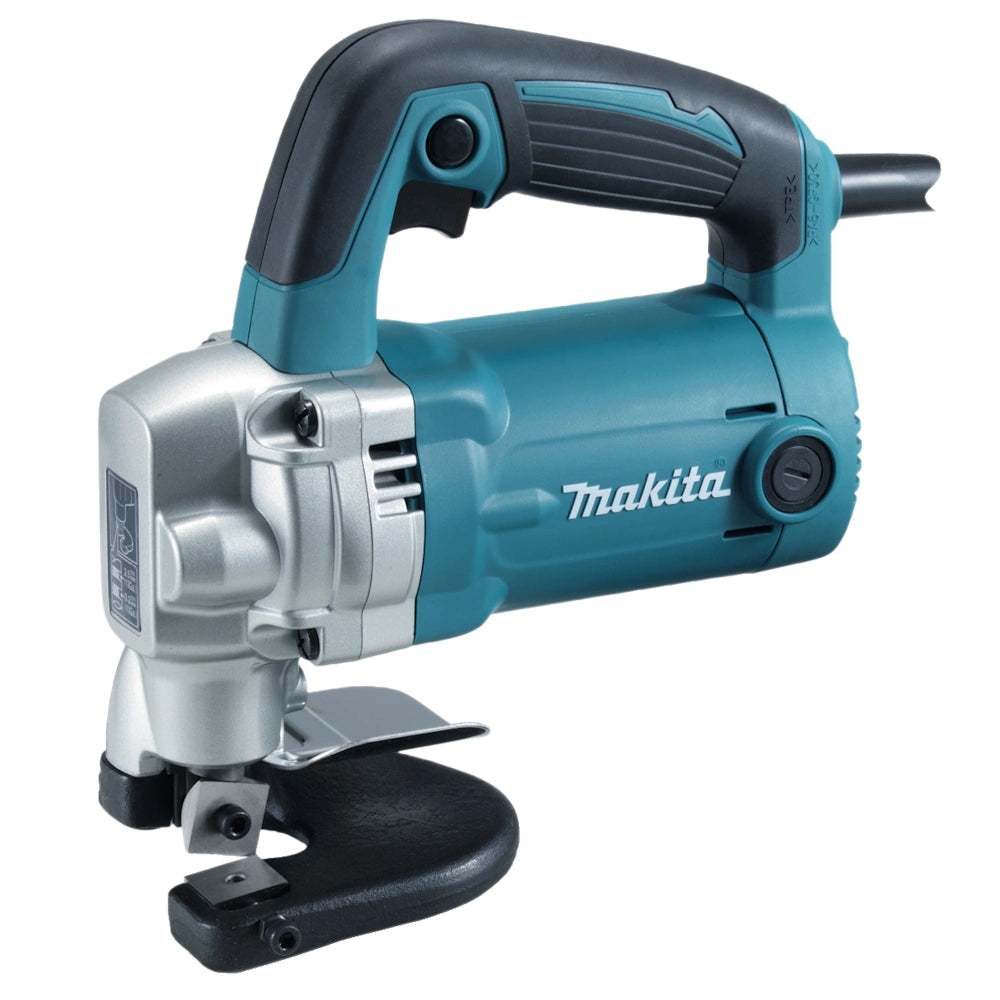

Handy, high-capacity metal shear with handle

A metal shear for straight and curved cuts with a radius of 50 mm, cuts a clean-edged strip from the middle. A high cutting capacity of 4,0 mm for aluminium and 3,2 mm for steel. A motor capacity of 710 W and a stroke rate of 1 600 min-1.

User Guide for JS3201 View full details

Product Specifications

Power Supply Cord UK: 2,5 m

Cutting Capacity Aluminum (up to 200N/mm²): 4,0 mm

Cutting Capacity Mild Steel (up to 400N/mm²): 3,2 mm

Cutting Capacity Stainless Steel (up to 600N/mm²): 2,5 mm

Cutting Capacity Stainless Steel (up to 800N/mm²): 1,5 mm

Sound Pressure Level: 81 dB(A)

Power Supply Cord: 4,0 m

Product Dimensions (L x W x H): 213 x 90 x 239 mm

Strokes per Minute (SPM): 1600 min⁻¹

Min. Internal Cutting Radius: 50 mm

Continuous Input Power: 710 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Product net weight (new): 3,4 kg

Vibration Level (3 axes): 17,0 m/s²

Sound Power Level (LWA): 92 dB(A)

Weight Without Cable (EPTA): 3,4 kg

Noise Uncertainty (K Factor): 3 dB(A)

Min. External Cutting Radius: 50 mm

Tool Category: Cutting
