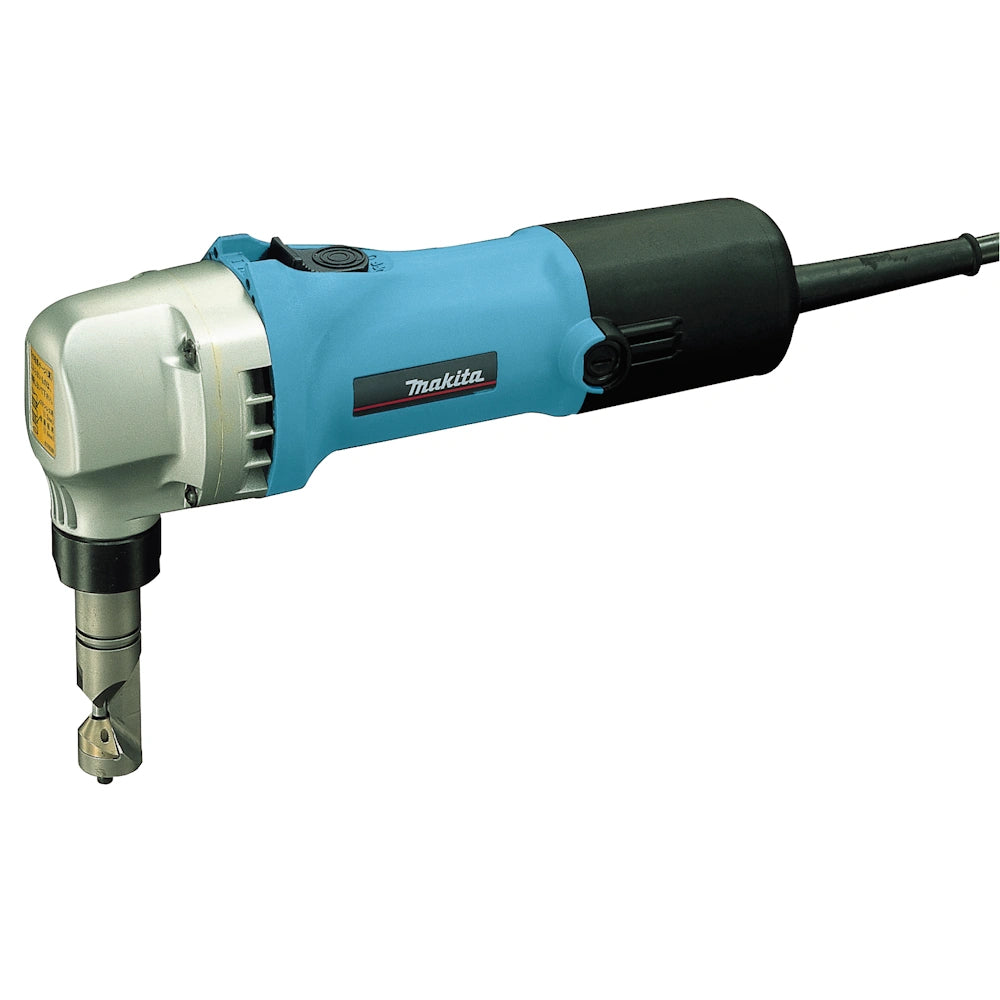

Nibbler JN1601

Nibbler JN1601

295.000 JOD
295.000 JOD
Sale Sold out
Shipping calculated at checkout.

NIBBLER (1.6MM) 1/16

550 W • 2 200 min⁻¹

Clean and precise cutting of metal and other sheets

A slimline nibbler that achieves precise, clean-edged curved and straight cuts. Ideal for cutting profile sheets, such as roofing materials. The nibbler die rotates 360 degrees. A cutting capacity of 2,5 mm for aluminium and 1,6 mm for steel. A motor capacity of 550 W and a stroke rate of 2 200 min-1.

User Guide for JN1601 View full details

Product Specifications

Cutting Capacity Aluminum (up to 200N/mm²): 2,5 mm

Cutting Capacity Mild Steel (up to 400N/mm²): 1,6 mm

Cutting Capacity Stainless Steel (up to 600N/mm²): 1,2 mm

Cutting Capacity Stainless Steel (up to 800N/mm²): 0,8 mm

Sound Pressure Level: 91 dB(A)

Power Supply Cord: 2,0 m

Min. Internal Cutting Radius: 45 mm

Strokes per Minute (SPM): 2200 min⁻¹

Product Dimensions (L x W x H): 261 x 75 x 177 mm

Continuous Input Power: 550 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Vibration Level (3 axes): 7,0 m/s²

Sound Power Level (LWA): 102 dB(A)

Product net weight (new): 1,6 kg

Weight Without Cable (EPTA): 1,6 kg

Noise Uncertainty (K Factor): 3 dB(A)

Min. External Cutting Radius: 50 mm

Tool Category: Cutting
