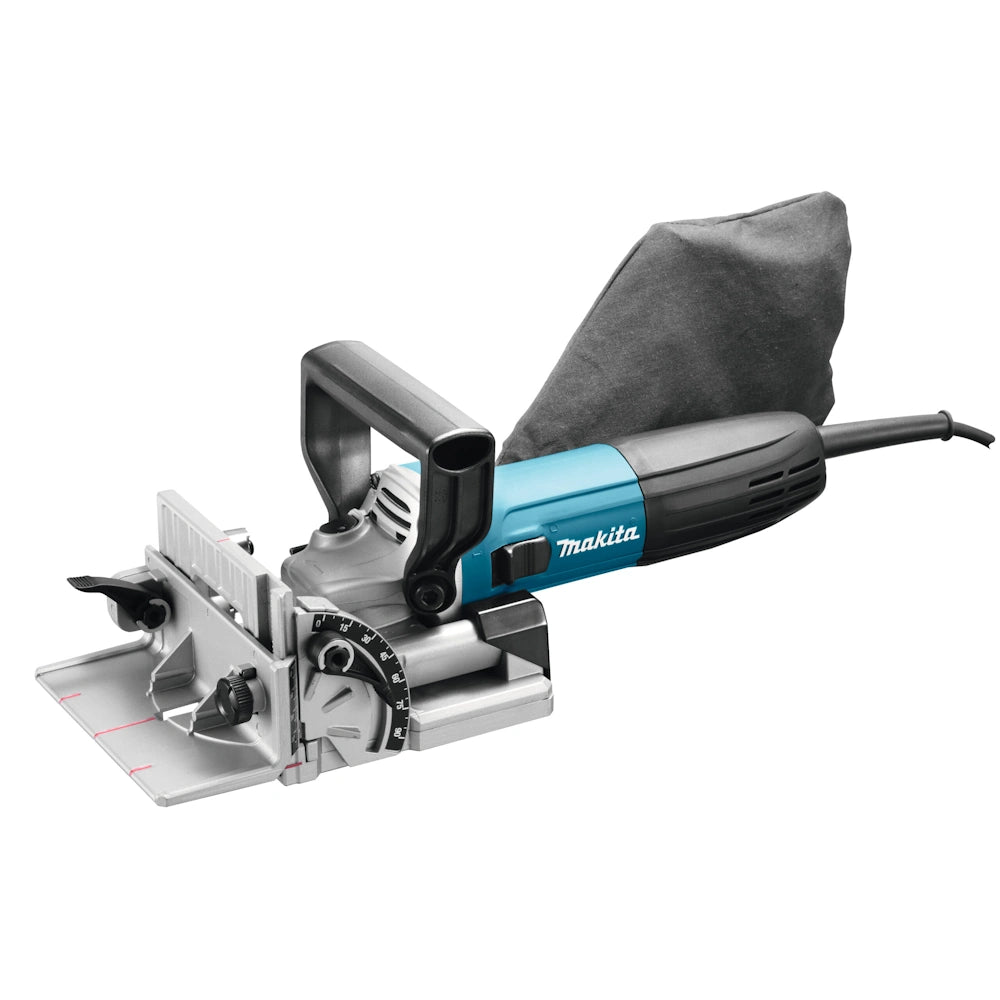

Plate Joiner PJ7000

Plate Joiner PJ7000

215.000 JOD
215.000 JOD
Sale Sold out
Shipping calculated at checkout.

PLATE JOINER

701 W • 100 mm

Plate joiner for carpenters and furnishing fitters

A 701 W plate joiner with a 100 mm blade and 20 mm bore for carpentry applications. A maximum bore depth of 20 mm. The tool is suitable for making biscuit joints in sheets and other wooden structures.

User Guide for PJ7000 View full details

Product Specifications

Plastic Carrying Case: 1

Bore Size (Arbor Diameter): 22 mm

Kerf dimension: 4 mm

Sound Pressure Level: 86 dB(A)

Power Supply Cord: 2,5 m

Product Dimensions (L x W x H): 302 x 139 x 145 mm

Continuous Input Power: 701 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Product net weight (new): 2,5 kg

Vibration Level (3 axes): ≤ 2,5 m/s²

Sound Power Level (LWA): 97 dB(A)

Weight Without Cable (EPTA): 2,8 kg

Noise Uncertainty (K Factor): 3 dB(A)

Max. Plunge Depth: 20 mm

Vacuum cleaner connection Ø in / out: 25/31 mm

Blade Diameter: 100 mm

Tool Category: Milling and Planing

No load speed: 11000 min⁻¹
