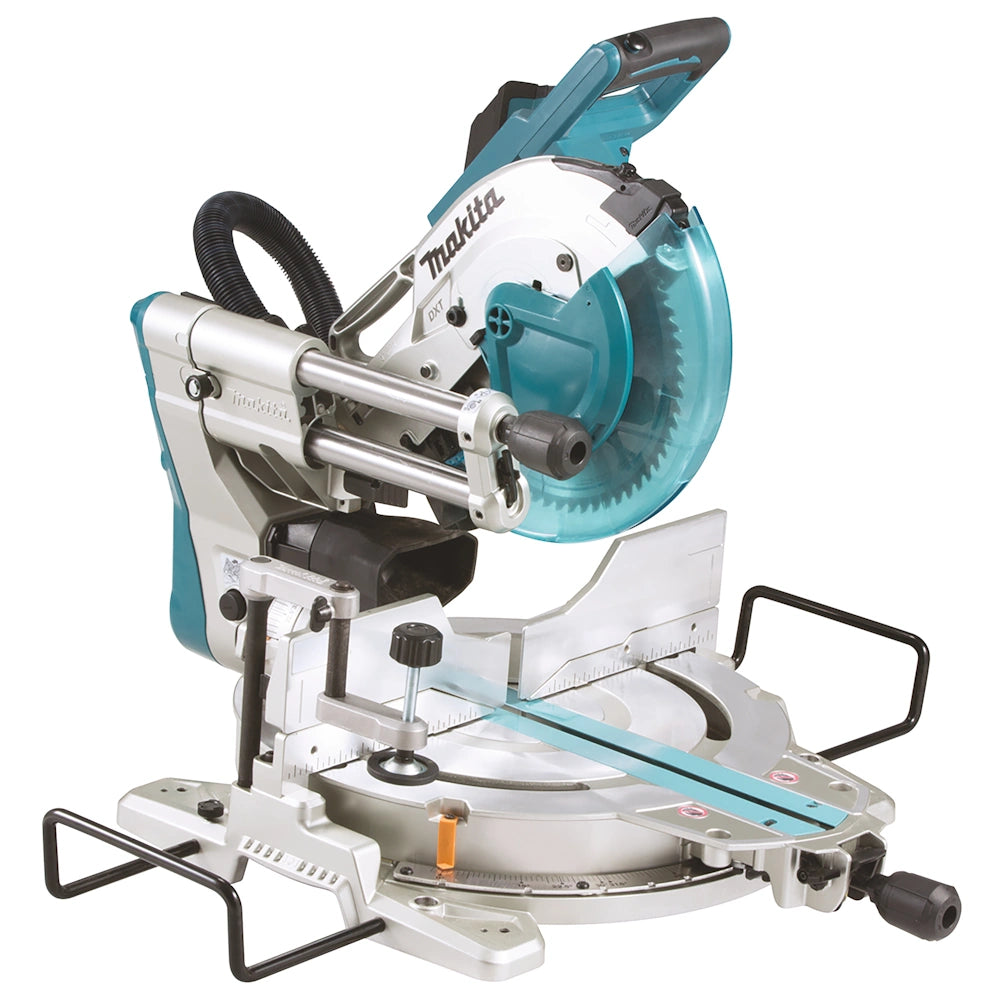

Slide Compound Miter Saw LS1019L

Slide Compound Miter Saw LS1019L

850.000 JOD
850.000 JOD
Sale Sold out
Shipping calculated at checkout.

SLIDE COMPOUND MITER SAW

1510 W • 260 mm • 3200 min⁻¹

Efficient and accurate saw for high-capacity applications

An accurate high-capacity saw with a 1 510 W motor for building and other worksites. The dual slide system reduces the need for space, enabling the machine to be placed by a wall. The bevel lock is located at the front of the saw. Excellent dust removal function.

User Guide for LS1019L View full details

Product Specifications

Bore Size (Arbor Diameter): 30 mm

Capacity 45° (Miter R/L 45°, Bevel 0°): 91 x 197 / 68 x 218 mm

Capacity 90°: 91 x 279 / 68 x 310 mm

Capacity 45° left (Miter 0°, Bevel L 45°): 58 x 279 / 42 x 310 mm

Sound Pressure Level: 91 dB(A)

Max. Bevel Range (Left): 48 / 48 º

Laser Class: 2M

Power Supply Cord: 2,5 m

Product Dimensions: (L x W x H): 805 x 644 x 660 mm

Continuous Input Power: 1510 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Vibration Level (3 axes): ≤ 2,5 m/s²

Sound Power Level (LWA): 101 dB(A)

Weight Without Cable (EPTA): 26,3 kg

Noise Uncertainty (K Factor): 3 dB(A)

Blade Diameter: 260 mm

Tool Category: Sawing

Bevel capacity right 45° (Miter 0°, Bevel R 45°): 43 x 279 / 29 x 305 mm

Max. Mitre Range (Left): 60 / 60 º

No load speed: 3200 min⁻¹

Product Features

  • Superior capacity
  • Outstanding dust extraction
  • Can be placed all the way to the wall due to new construction
