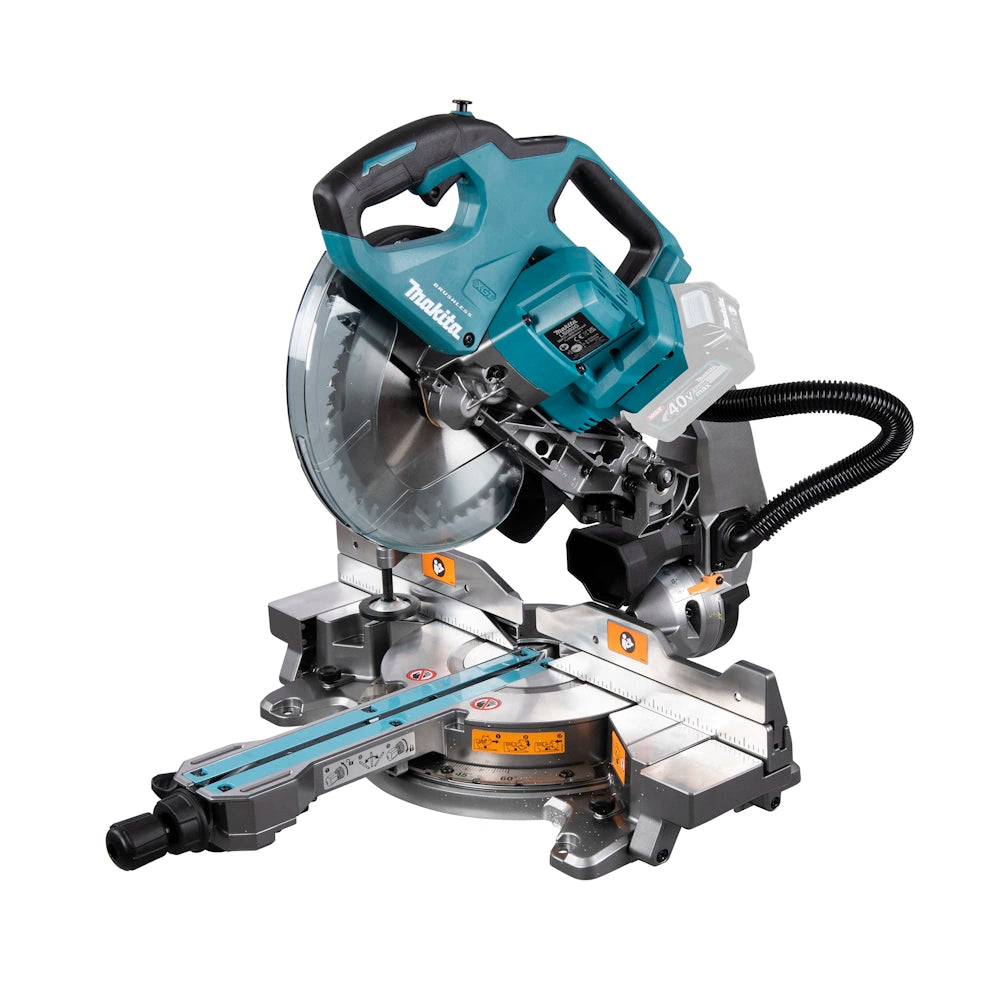

Slide Compound Miter Saw XGT LS002G

Bore Size (Arbor Diameter): 30 mm

Tool weight with battery (EPTA): 16,4 - 17,6 kg

Capacity 45° (Miter R/L 45°, Bevel 0°): 70 x 220 mm

Capacity 90°: 70 x 312 mm

Capacity 45° left (Miter 0°, Bevel L 45°): 50 x 312 mm

Battery Voltage: 40 V

Brushless Motor: YES

Sound Pressure Level: 89 dB(A)

Max. Bevel Range (Left): 48 / 48 º

Product Dimensions (L x W x H): 702 x 551 x 557 mm

Vibration Uncertainty (K Factor): 1,5 m/s²

Product net weight (new): 15,3 kg

System: XGT 40Vmax/80V max

Vibration Level (3 axes): ≤ 2,5 m/s²

Sound Power Level (LWA): 100 dB(A)

Voltage XGT: 1

Noise Uncertainty (K Factor): 3 dB(A)

Vacuum cleaner connection Ø in / out: 35/40 mm

Blade Diameter: 216 mm

Tool Category: Sawing

AWS FUNCTION: YES

Bevel capacity right 45° (Miter 0°, Bevel R 45°): 30 x 312 mm

No load speed: 4800 min⁻¹

Max. Mitre Range (Left): 60 / 60 º

• Brushless maintenance-free and long-life motor
• High precision cutting
• Rail-forward design enables to be placed against a wall for maximising work space
• Single sliding system enables smooth operation to produce superior cuts
• Large bevel lock lever; Easy to operate even if the machine is placed close to the wall, because you do not need to reach for the rear of the machine to turn the lever
• Precision Mitre angle adjustment; Can be achieved simply by turning a knob on the turn base
• Extendable sub tables help stabilise long material cuts
• Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
• Twin LED job lights brightly illuminate the cut line for easy cutting in darker spaces
• Front knob for easy bevel angle adjustment
• One touch slide lock; Can be easily locked/unlocked by inserting/removing the lock pin
• Ergonomic rubberised D-handle design for better fit and added comfort
• Soft start feature for smooth start-ups
• Electric brake for maximum productivity and increased operator safety
• Battery protection circuit protects against overloading, over-discharging and over-heating
