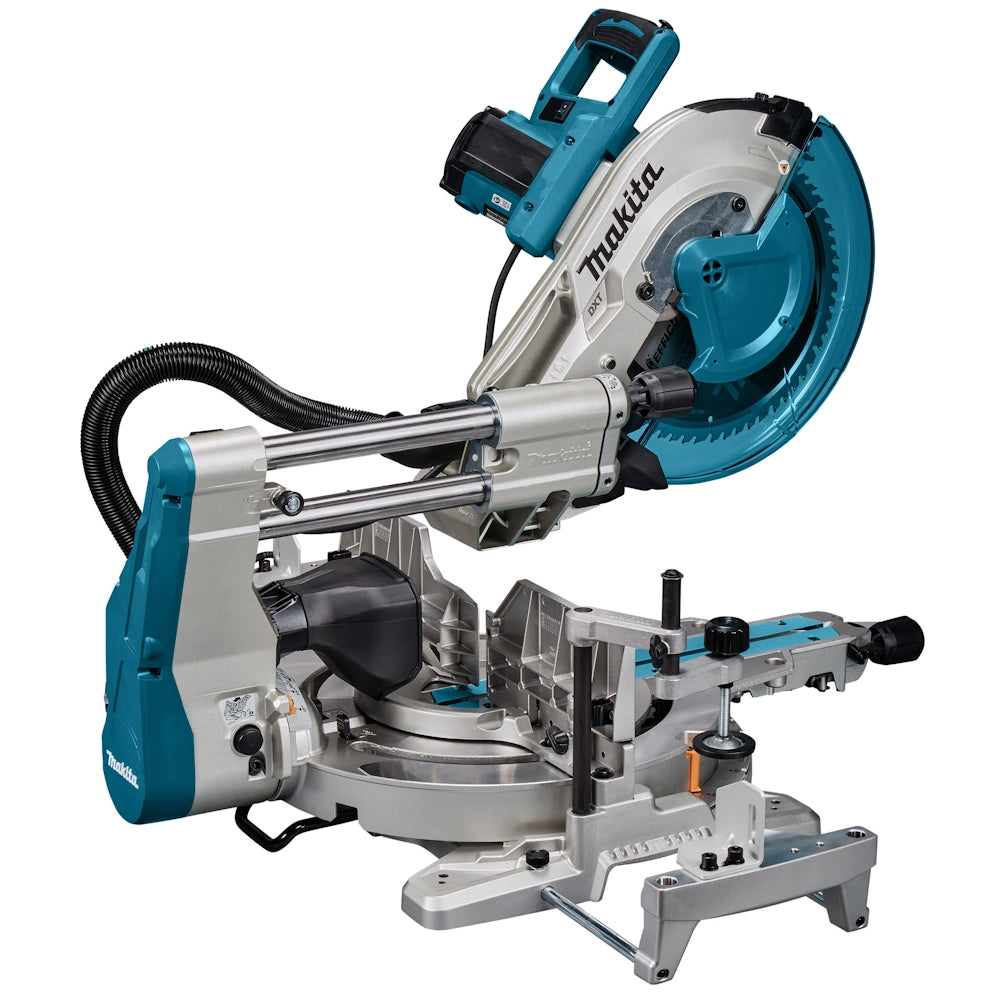

Slide Compound Saw LS1219L

Slide Compound Saw LS1219L

950.000 JOD
950.000 JOD
Sale Sold out
Shipping calculated at checkout.

SLIDE COMPOUND SAW 305MM

1 800 W • 305 mm • 3 200 min⁻¹

Efficient high-capacity saw with a laser for quick and accurate cutting

An accurate high-capacity mitre saw with a 1 800 W motor for professional use. The dual slide system reduces the need for space, enabling the machine to be placed by a wall. The bevel lock is located at the front of the saw. Equipped with an excellent dust removal function and a built-in laser that indicates line-of-cut.

User Guide for LS12199L View full details

Product Specifications

Bore Size (Arbor Diameter): 30 mm

Capacity 45° (Miter R/L 45°, Bevel 0°): 107 x 255 / 92 x 268 mm

Capacity 90°: 107 x 363 / 92 x 382 mm

Capacity 45° left (Miter 0°, Bevel L 45°): 71 x 363 / 61 x 382 mm

Sound Pressure Level: 91 dB(A)

Max. Bevel Range (Left): 48 / 48 º

Laser Class: 2M

Power Supply Cord: 2,5 m

Product Dimensions (L x W x H): 898 x 664 x 725 mm

Continuous Input Power: 1800 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Vibration Level (3 axes): ≤ 2,5 m/s²

Sound Power Level (LWA): 100 dB(A)

Weight Without Cable (EPTA): 29,5 kg

Noise Uncertainty (K Factor): 3 dB(A)

Blade Diameter: 305 mm

Tool Category: Sawing

Bevel capacity right 45° (Miter 0°, Bevel R 45°): 54 x 363 / 44 x 382 mm

No load speed: 3200 min⁻¹

Max. Mitre Range (Left): 60 / 60 º
