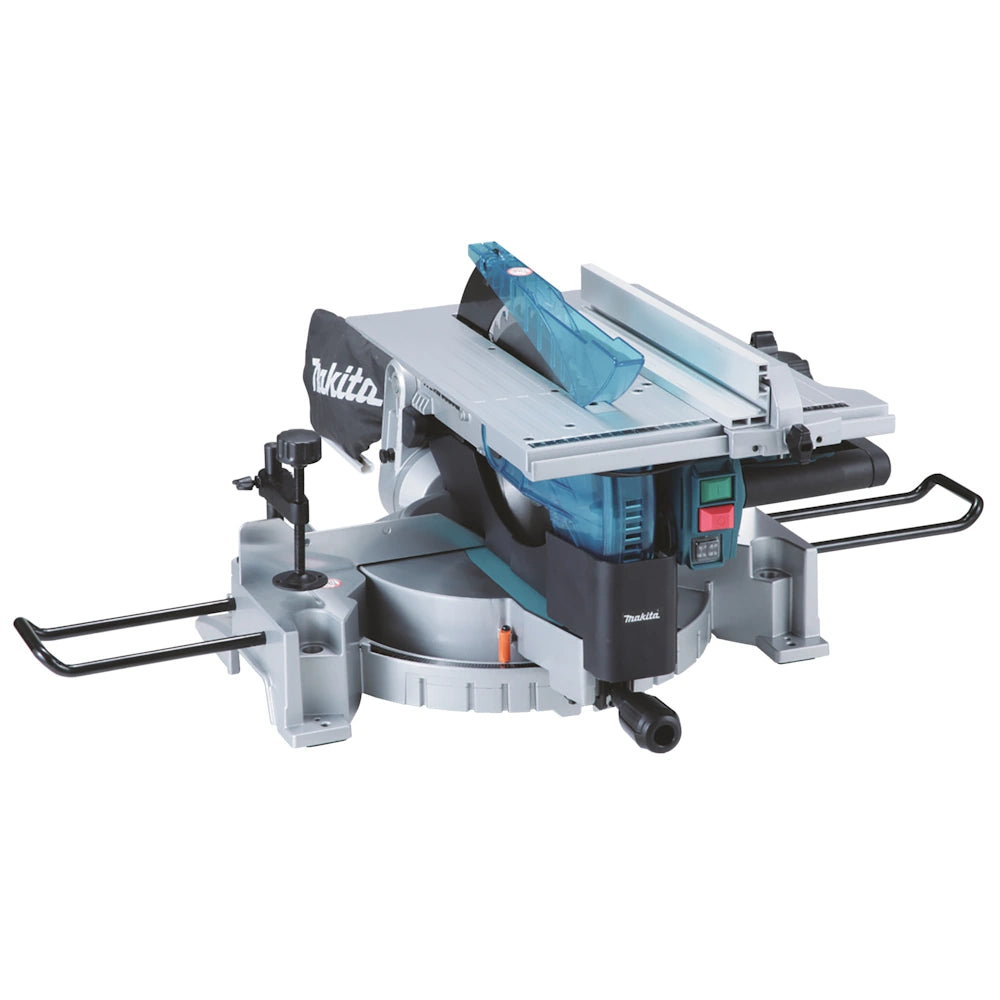

Table Top Mitre Saw LH1201FL

Table Top Mitre Saw LH1201FL

690.000 JOD
690.000 JOD
Sale Sold out
Shipping calculated at checkout.

TABLE MITER SAW

1 650 W • 305 mm

Easy to change from mitre saw to table saw

A flip-over saw with a powerful 1 650 W motor, 305 mm blade and high sawing capacity. Easy to change from a table saw to a mitre saw. Its versatility makes this tool an ideal choice for construction sites.

User Guide for LH1201L View full details

Product Specifications

Max. Cutting Height (above Table) at 90°: 52 mm

Bore Size (Arbor Diameter): 30 mm

Capacity 45° (Miter R/L 45°, Bevel 0°): 95 x 110 / 62 x 135 mm

Capacity 90°: 95 x 155 / 62 x 200 mm

Capacity 45° left (Miter 0°, Bevel L 45°): 64 x 155 / 40 x 200 mm

Sound Pressure Level: 93 dB(A)

Laser Class: 2

Max. Bevel Range (Left): 45 / 0 º

Power Supply Cord: 2,5 m

Product Dimensions (L x W x H): 610 x 535 x 692 mm

Continuous Input Power: 1650 W

Vibration Uncertainty (K Factor): 1,5 m/s²

Product net weight (new): 20,9 kg

Vibration Level (3 axes): ≤ 2,5 m/s²

Sound Power Level (LWA): 106 dB(A)

Weight Without Cable (EPTA): 20,9 kg

Noise Uncertainty (K Factor): 3 dB(A)

Vacuum cleaner connection Ø in / out: 32 / 37 mm

Blade Diameter: 305 mm

Tool Category: Sawing

No load speed: 3800 min⁻¹

Max. Mitre Range (Left): 47 / 52 º
